Synthetic Braided

A Leading Provider Of Specialty Thermocouple Wire, Cable And Connector Products

Example Applications: Replacement for beaded thermocouples, heat treating, coke ovens, soaking pits, furnace survey thermocouples, brick & tile kilns, closed tubes or protective atmospheres, glass and ceramic manufacturing, metalworking plants Symbols:
† = This product has a saturant on the singles and jacket
‡ = This product has a light saturant on the jacket to help prevent fraying

CFCF: Highest temperature flexible insulation available. The braided yarn is a composition of the oxides of alumina, boric and silicone. Each conductor as well as the overall jacket are braided with this high temperature yarn to provide maximum flexibility at extremely high temperatures.
Compounds Temp. Rating* Notes
Singles & Jacket:
Ceramic Fiber
Continuous: 1205°C
(2200 °F)

Intermittent: 1430°C (2600°F)

Comparison to Other Constructions:
Abrasion Resistance - Poor
Chemical Resistance - Fair
Moisture Resistance - Poor
Relative Cost - High

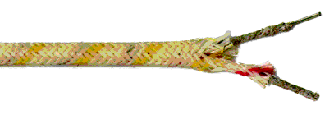

MCFCF:This construction has a mica barrier tape applied to each single conductor prior to being insulated with the ceramic fiber yarns. The construction is identical to the CFCF construction except for the addition of a light jacket saturant and the mica tape, which protects against potential shorting from the black carbon residue which forms when the product is used in applications where the air supply is limited, such as thermocouples in protection tubes. The mica may also provide moisture protection during temperature cycling.

Compounds Temp. Rating Notes
Singles:
Ceramic Fiber & mica wrap

Jacket:
Ceramic Fiber
Continuous: 1205°C
(2200 °F)

Intermittent: 1430°C (2600°F)

Comparison to Other Constructions:
Abrasion Resistance - Good
Chemical Resistance - Fair
Moisture Resistance - Good
Relative Cost - Low

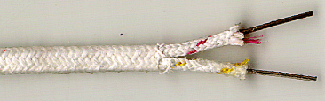

RR: High temperature silica fibers are braided on the single conductors as well as the overall jacket. Because saturant is not used, this product is not recommended for abrasive applications. Each conductor as well as the overall jacket are braided with this high temperature yarn to provide maximum flexibility at extremely high temperatures. A tracer is braided into insulation for polarity and calibration identification.

Compounds Temp. Rating Notes
Singles & Jacket:
Refrasil
Continuous: 980°C
(1800 °F)

Intermittent: 790°C (1450°F)

Comparison to Other Constructions:
Abrasion Resistance - Poor
Chemical Resistance - Fair
Moisture Resistance - Fair
Relative Cost - High

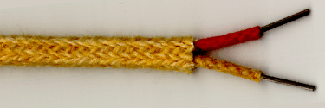

SFSF: Tough, heavy insulation for use where abrasion resistance on braided insulation is required. Conductors are insulated with a braided composite synthetic yarn* & impregnated with a color-coded moisture resistant saturant. The insulated conductors are laid parallel & insulated with a heavy yarn composite synthetic fiber jacket which is then coated with the same saturant.
Compounds Temp. Rating Notes
Singles & Jacket:
Synthetic Fiber

*Above construction can be supplied with skived Teflon® tape over each conductor prior to applying the synthetic overbraid for increased chemical resistance. Use code "TFSFSF"
Continuous: 290°C
(550 °F)

Intermittent: 340°C (650°F)

Comparison to Other Constructions:
Abrasion Resistance - Good
Chemical Resistance - Fair
Moisture Resistance - Fair
Relative Cost - Medium
