Teflon Extruded
A Leading Provider Of Specialty Thermocouple Wire, Cable And Connector Products
| Example Applications: Power Generating Plants, Petroleum Plants, Field Heat Treating Symbols: † = Available as a UL construction. Prefix construction code with a "U" ‡ = PFA Teflon also available - substitute "PF" for "T" in code § = Also available as a multi-pair construction 1 = Two singles twisted together without a jacket 2 = In multi-pair construction, outer shield only 3 = This construction code applies only to multi-pair cable ® = Teflon is a registered trademark of E.I. DuPont |
||||||||

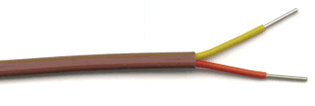

TT: Color-coded FEP Teflon® is extruded over each single conductor. The single insulated conductors are laid parallel and insulated with an extruded jacket of FEP Teflon®
Abrasion Resistance - Good Chemical Resistance - Fair Moisture Resistance - Good Relative Cost - Low |
||||||||
TTW:Color-coded FEP Teflon is extruded over each single conductor. Insulated conductors are twisted together.
Abrasion Resistance - Good Chemical Resistance - Fair Moisture Resistance - Good Relative Cost - Low |
||||||||
TTWT: Color-coded FEP Teflon® is extruded over each single conductor. The single insulated conductors are twisted and insulated with an extruded jacket of FEP Teflon®.
Abrasion Resistance - Good Chemical Resistance - Fair Moisture Resistance - Good Relative Cost - Low |
||||||||
TAT: Color-coded FEP Teflon® is extruded over each single conductor. Insulated conductors are twisted with a stranded drain wire, and the twisted construction is covered with an aluminum/Mylar tape. A FEP Teflon® jacket is extruded over the shielded pairs or triads.
Abrasion Resistance - Good Chemical Resistance - Fair Moisture Resistance - Good Relative Cost - Low |
||||||||

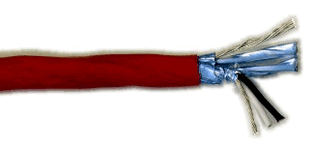

TAAT: Color-coded FEP Teflon® is extruded over each single conductor. Insulated conductors are twisted with a stranded drain wire and shielded.The pairs are cabled together and the entire construction is wrapped with an aluminum / Mylar tape shield. A copper drain wire is applied under the shield. A FEP¹ Teflon® jacket is extruded over the shielded pairs or triads.
Abrasion Resistance - Good Chemical Resistance - Fair Moisture Resistance - Good Relative Cost - Low |
