Taped Products

A Leading Provider Of Specialty Thermocouple Wire, Cable And Connector Products

Example Applications: Power Plants, Kilns, Petroleum Plants, Aerospace Industry, Cryogenic Applications, Aircraft Bonding, Glass, Ceramic & Brick Applications Symbols:
† = Available as a UL construction. Prefix construction code with a "U"
‡ = PFA Teflon also availiable - substitute "PF" for "T" in code
1 = Singles and jacket are each double-wrapped
® = Kapton and Teflon are registered trademarks of E.I. DuPont

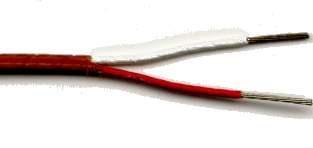

KK: Very tough, durable double wrap of heat-fused polyimide tape is applied over each conductor. Each insulated single conductor is coated with an ANSI color-coded polyimide varnish. The jacket consists of a double-wrapped heat-fused polyimide tape.
Compounds Shields /Twisting Temp. Rating Notes
Singles & Jacket:
Kapton
None Continuous: 315°C
(650 °F)
1
Comparison to Other Constructions:
Abrasion Resistance - Good
Chemical Resistance - Good
Moisture Resistance - Good
Relative Cost - High

KAK: Very tough, durable double wrap of heat-fused polyimide tape is applied over each conductor. Insulated conductors are twisted with a stranded drain wire and the twisted construction is covered with aluminum / Kapton tape. The outer jacket consists of a double-wrapped heat-fused polyimide tape.

Compounds Shields /Twisting Temp. Rating Notes
Singles & Jacket:
Kapton
Shield:
Aluminum Kapton

Singles: Twisted

Continuous: 315°C
(650 °F)

Intermittent:
430°C (650 °F)

1
Comparison to Other Constructions:
Abrasion Resistance - Good
Chemical Resistance - Good
Moisture Resistance - Good
Relative Cost - High

TFTF: A double wrap of heat-fused TFE tape is spirally applied over each single conductor and as an overall jacket. Duplex construction.

Compounds Shields /Twisting Temp. Rating Notes
Singles & Jacket:
TFE
None

Continuous: 260°C
(500 °F)

Intermittent:
315°C (600 °F)


Comparison to Other Constructions:
Abrasion Resistance - Good
Chemical Resistance - Good
Moisture Resistance - Good
Relative Cost - High

TFATF: Very tough, durable double wrap of heat-fused TFE tape is applied over each conductor. Insulated conductors are twisted with a stranded drain wire and the twisted construction is covered with aluminum / Kapton tape. The outer jacket consists of a double-wrapped heat-fused TFE tape.
Compounds Shields /Twisting Temp. Rating Notes
Singles & Jacket:
TFE
Shield:
Aluminum Kapton

Singles: Twisted

Continuous: 260°C
(500 °F)

Intermittent:
315°C (600 °F)


Comparison to Other Constructions:
Abrasion Resistance - Good
Chemical Resistance - Good
Moisture Resistance - Good
Relative Cost - High
